Utility Trailers

Notes

When you're hauling something valuable choose a Custom Classic.

With our product, you don’t have to keep your eye glued to the rear view mirror. With inexpensive alternatives come quite a few negatives – short longevity, quick to rust, loud when pulling, bumpy , and potentially unsafe. While budget trailers are inexpensive initially it only takes one failure for them to become expensive quickly.

You can keep your eyes one the road when pulling a Custom Classic.

Below are some custom options and specifications. Call for more details!

319.635.2751

Standard Framing Material:

  • Side and Front Outer Frame: HD Bottom Rail – 3/16” x 9-1/4” Extruded Aluminum
  • Rear Frame: 2” x 4” Aluminum Tube
  • Tongue: HD 2” x 4” x 1/4" Aluminum Tube Reinforced w/ 2” x 2” Aluminum Angle Supports
  • Floor: Traction Floor Boards – Extruded 1-3/4” x 8” Interlocking Tongue and Groove
  • Jack: 1,200# Capacity

standard | optional

Standard Specifications Optional Specifications
Length 12’ Length 10’ – 16’
Width 80” Width 60”, 72”
Flooring Traction Floor – Extruded 1-3/4”x8” Interlocking Flooring Diamond Tread Wood Smooth Aluminum Floor
Hold Downs Four (4) Surfaced Mounted D-Rings Hold Downs Additional 4” D-Rings Outside Banding Rail – 3/8”x2” Alum. 1-1/4”x3” Stake Pockets
Axles One (1) 2,200# Dexter, Grease Hubs, ST205/75Rx14 Tires, Steel Wheels Axles 1,000# Dexter Easy Lube Hubs Chrome Hub and Nut Covers Aluminum Wheels Stainless Steel Simulators
Fenders Diamond Tread Aluminum With End Gussets Fenders Smooth Aluminum
Lights Two (2) 6” Oval LED Stop/Turn/Tail Three (3) Rear LED Red ¾” Marker Four (4) Side LED ¾” Marker Lights
Ramp(s) 54” 1-Piece Hinged Aluminum Ramp Ramp(s) 54” 2-piece Hinged Folding Ramp Two (2) Single Ramps

Photos

Deck

HD Aluminum FloorHD Side Rail
HD Aluminum FloorHD Side Rail

Fenders

Diamond Tread FendersSmooth Fenders
Diamond Tread FendersSmooth Fenders

Rear Ramps

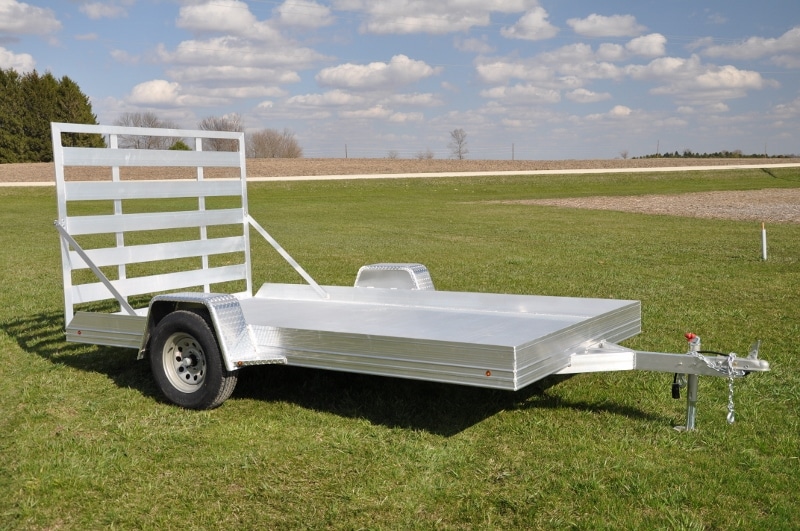

Folded RampFolding Ramp ExtendedLatch SystemOne Piece Ramp
Folded RampFolding Ramp ExtendedLatch SystemOne Piece Ramp

Tongue & Jacks

Folding JackHD Tongue w/ A-Frame JackLight Duty TongueMedium Duty Tongue
Folding Jack (800x600)HD Tongue with A-Frame JackLight Duty TongueMedium Duty Tongue
