Bumper Pull Trailers
Notes
Why choose aluminum?
- Most owners are not going to be using their trailer daily. While your trailer is not in use and sitting, steel trailer owners have to be concerned about their investment rusting away.
- Lightweight: Aluminum is much more practical to pull .
- Steel requires maintaining the paint finish, which can get expensive. When a steel surface is scratched it is vulnerable to rust. Aluminum is resistant to rust.
- In the event repair is needed, steel repair can be very expensive. If steel bends, it typically likes to stay bent.
- Enjoy a smoother ride when choosing aluminum
Features of Custom Classic:
- (.100) Smooth Aluminum Bumper Pull – Competitors often use .040 or .050. Our material can be welded, theirs has to be riveted. Welding has the benefit of adding strength while riveting doesn’t.
- Double Tongue Construction – competitors often use single, ours are made with 2 x 4 x .25 material.
- Extruded Hinges – Finished with a high quality die, bronze bushings, zero thread inside of thread – all made this way to avoid a sloppy hinge later
- Framed Roof Vents – Add strength and help eliminate roof vibrations when open.
- Side Ramp Door – Stainless springs with (4) hinges – help ensure a long life, which you don’t typically have with only have 2 aluminum spring hinges
- Double Rear Corner Post – Using a 2 x 4 x .25 corner with 20″ OC Roof bows, often others will use a single 2 x 4 x 1/8″ corner post
- Fenders enclosed with liners – Less damage from ice and snow as well as less corrosion.
Take a look further at our photos and specifications, call if you have any questions
Gene 319.635.2751 Lucas 319.238.0840
| Standard Specifications | Optional Specifications | ||
| Length | 16’ | Length | 12’ – 18’ |
| Width | 6’ 8” | Width | 7’, 7’ 6”, 8” |
| Height | 6’ 6” | Height | 7’, 7’ 6”, 8” |
| Nose Configuration | 6’ 6” | Nose Configuration | 6’ 6” |
| Center Gate | One (1) w/ Swing Walk Thru Door Hold Up Blocks – Open & Shut Positions HD Slam Latch – Cast Aluminum Outside Slam Latch Release Handle Four (4) HD Extruded Hinges w/ Replaceable Brass Bushings and Stainless Steel Bolt | Center Gate | Slider Door Air Gaps per Customer’s Request Lo Pro Center Gates |
| Escape Door | RH 30” Wide Pressure Latch-Cast Aluminum | Escape Door | LH Side Up to 48” Wide Access Hole to Latch from insude |
| Rear Gate | Single Swing Gate w/ Slider Door Five (5) HD Extruded Hinges w/ Replaceable Brass Bushings and Stainless Steel Bolt Cam Latch w/ Safety Chain Two Top Air Gaps | Rear Gate | Double Swing (Both Ways) w/ Slider Door Double Rear Doors Full Rear Door (No Slider Door or Air Gaps) |
| Side Walls | 1/8” Extruded 6005A Panels 1”x2-1/2” Side Posts on 16” Center 1”x5” Side Posts at Gate Locations Two (2) Top Air Gaps – Approx. 5-1/2” Wide | Side Walls | Air Gaps per Customer Request |
| Floor | Traction Floor – Extruded 1-3/4”x8” Interlocking | Floor | Crimped Extruded Floor |
| Axles | Two (2) Dexter 3,500# on 12’ – 14’ Trailers, Electric Brakes, Grease Hubs, ST225/75Rx15 Tires, Steel Wheels Two (2) Dexter 6,000# on 16’-18’ Trailers Electric Brakes, Grease Hubs, 235/80Rx16 Tires, Steel Wheels | Axles | Easy Lube Hubs Chrome Hub and Nut Covers Aluminum Wheels Stainless Steel Simulators |
| Fenders | Smooth Teardrop Fenders | Fenders | Diamond Tread Teardrop on 6’ 6” Wide Board Fenders on 7’ Wide Trailers 5” Smooth Fenders on 7’ 6” Wide Trailers 2” Smooth Fenders on 8’ Wide Trailers |
| Vents | Two (2) Top 5-1/2” Air Gaps | Vents | Multiple Air Gaps per Customer Request Optional Bottom 3” Air Gap – No Charge Two Way Roof Vents |
| Vent Covers | Vent Covers | Lexan in Any or All Side and Rear Air Gaps Hinged Aluminum Cover Panels Non-Hinged Panels Attached w/ Screws | |
| Lights | ·One (1) Interior Light w/ Switch Two (2) LED Stop/Turn/Tail Lights on Rear 2” Round LED Rear Marker Lights ¾” LED Button Side and Front Marker Lights Three Center Front Marker Lights Two Marker Lights Down Each Side | Lights | Two (2) Back Up Lights – 6” LED Oval Two (2) Rear Load Lights – 6” LED Oval Side Roof Rail Lights Above or Below Fender Marker/Turn Lights Additional ¾” LED Side Marker Lights |
Photos
Air Vents
3 Way Air Vent

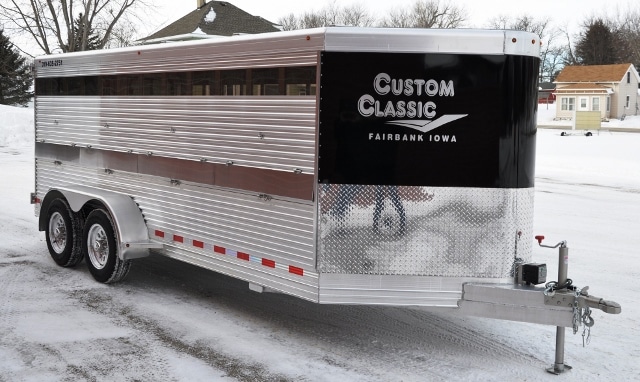

Vent Covers
Lexan Holder
Standard Side Vents
Center Gates
Center Gate w/ Swing Door
Full Swing w/ No Walkthrough Door
Gate Release
Handle
Lo Pro Gate
Escape Doors
Standard Escape Door
Fenders
7' Wide Trailer Fender
Tear Drop
Smooth Tear Drop
Flooring
Crimped Floor

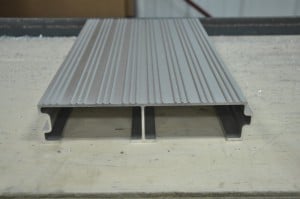

Standard Extruded I-Beam Floor
Jacks
A-Frame Jacks
Lighting
Standard Light Package
Interior Light
Top Load Lights
Nose Style
Flat Nose
V-Nose
Pen System
7 Pen
System
Center Post Gate Connections
Front V-Nose
Storage
Removable
Center Post
Ramps
4' Full Rear Ramp
Ramp Storage
Rear Ramp Storage
Rear Ramps
Rubber Mat on Rear Ramp
Rear Doors
Double Swing Doors
Rear Gate with Slider Door
Solid Rear Door
