| Standard Specifications |
Optional Specifications |
| Length |
8’ |
Length |
10’ – 20’ |
| Width |
80” |
Width |
Up to 102” |
| Height |
42” |
Height |
Per Customer Request |
| Floor |

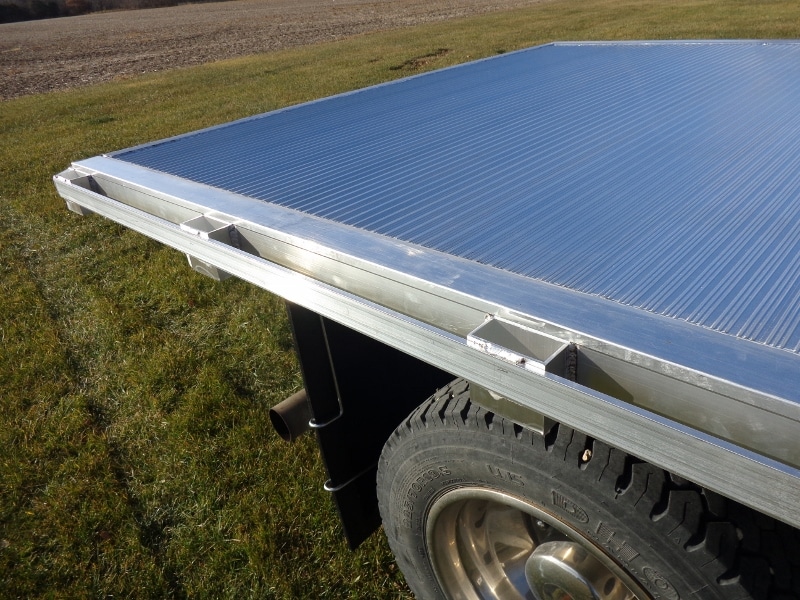

HD Extruded Traction Floor |
Floor |
Smotth Extruded Floor
Tread Plate |
| Long Sills |
4” Aluminum C Channel |
Long Sills |
6” Aluminum C Channel |
| Crossmembers |
2” I-Beam (For Diamond Tread Floor Only) |
Crossmembers |
|
| Side Rails |
Extruded Aluminum Side Rail |
Side Rails |
HD Extruded Aluminum Side Rail
o For Longer Platforms
6” C-Channel |
| Rear |
Extruded Aluminum Side Rail |
Rear |
6” Channel w/ Diamond Tread Rear Skirt |
| Lights |
Four (4) 6” Oval LED Stop/Turn/Tail Lights
Two (2) 6” Oval LED Back Up Lights
Three (3) ¾” LED Rear Cluster Lights
¾” LED side Marker Lights |
Lights |
|
| Front Bulkhead |
Tapered – 40” High – 80” Wide
Tread Plate on Bottom 20”
Louvered Window on Top |
Front Bulkhead |
Bulkhead to Fit Width and Height of Cab
Lights per Customer Request |
